Regular CNC SERIES

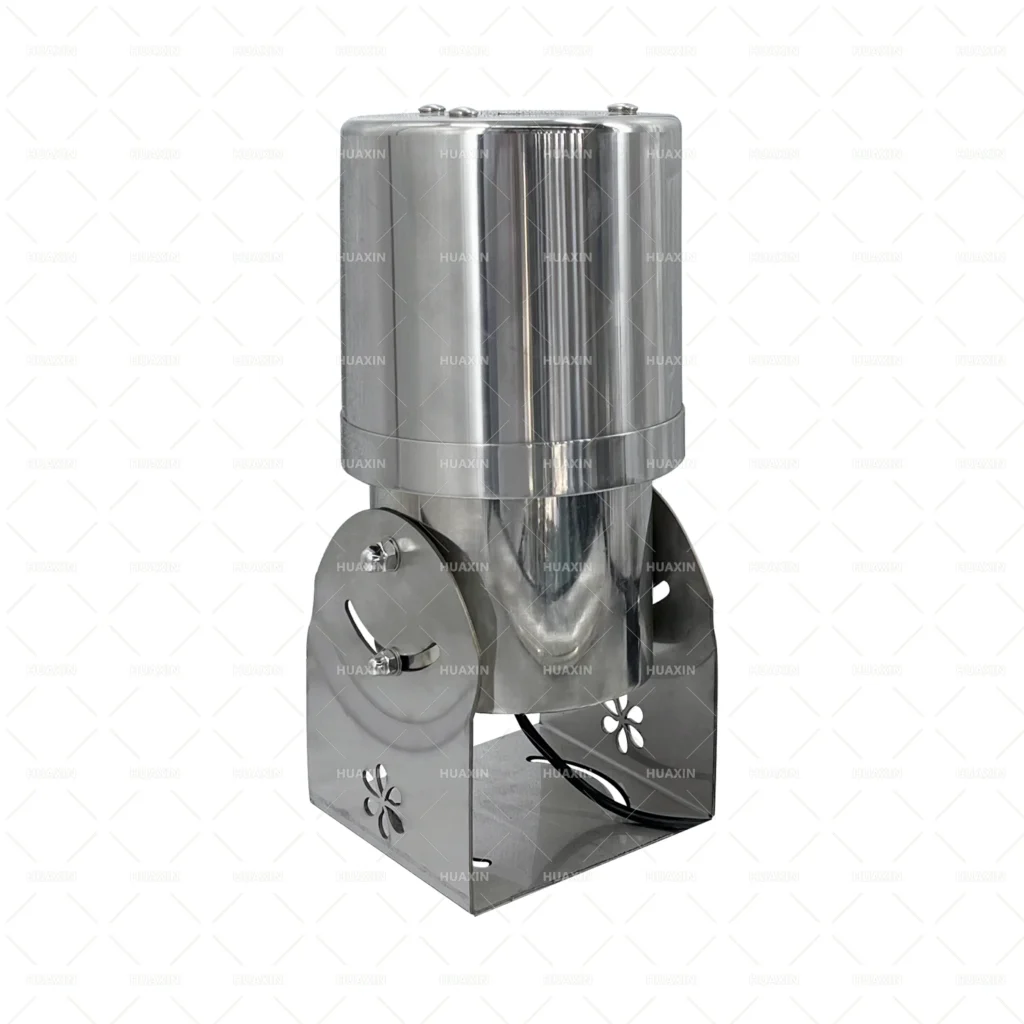

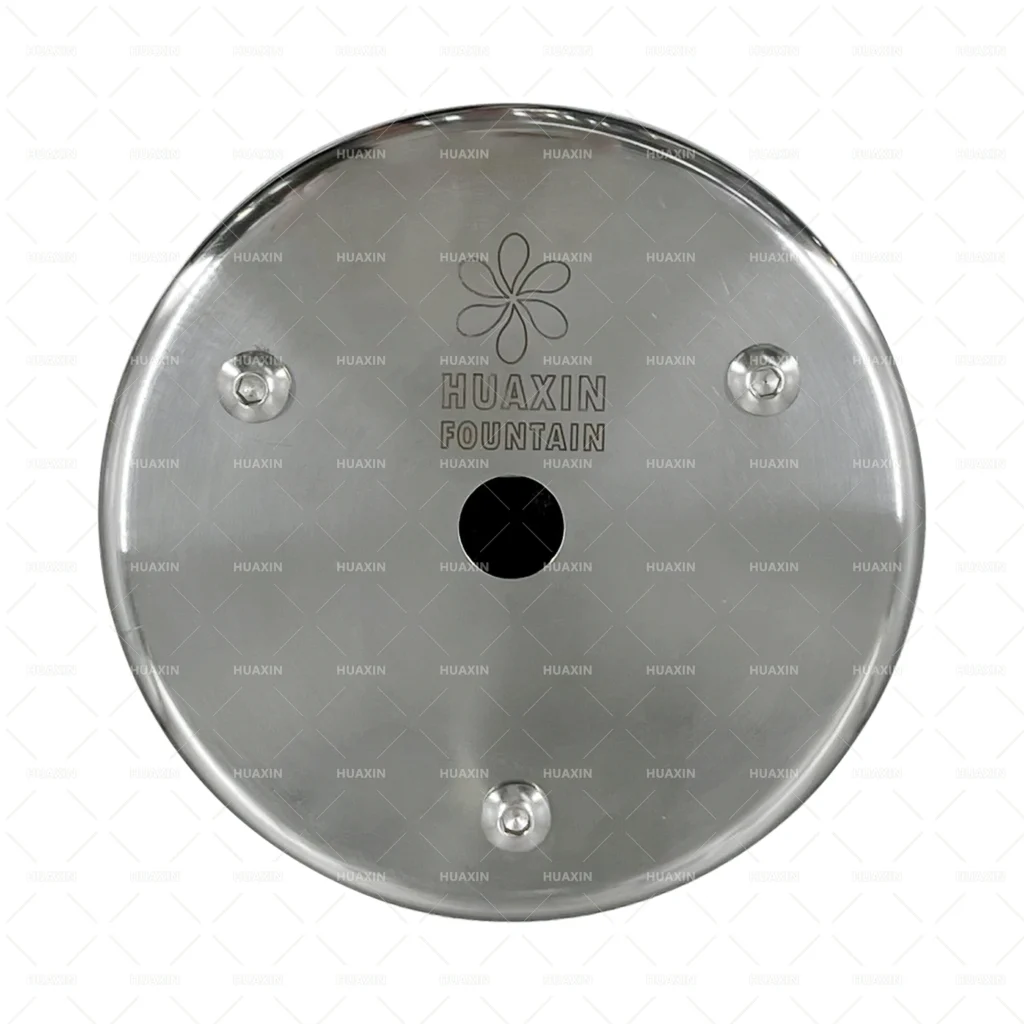

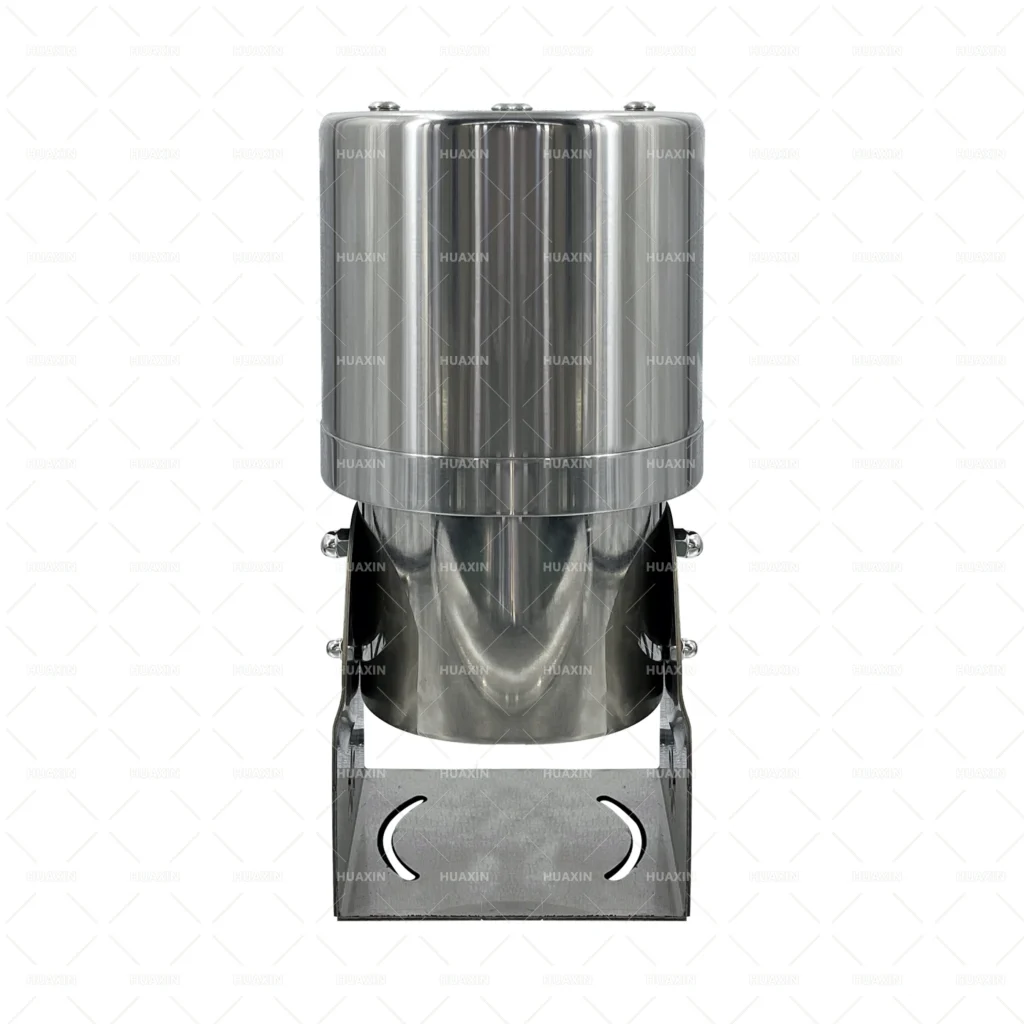

Jumping Jets

Laminar jumping jets manufactured by Huaxin Fountain are widely used in water features, and the glass-like stream from up close is a remarkable experience both day and night. And Built-in cutting device to create richer water forms.

Product Details

The jumping jet is a kind of fountain equipment that sprays water into the glass under pressure.

Parameter

ModelSMLXL
MaterialStainless Steel 304Stainless Steel 304Stainless Steel 304Stainless Steel 304
Net Weight (KG)111423.831
Rectifier Barrel Size (mm)L240*W220*H430L260*W240*H550L320*W340*H630L360*W400*H670
Packing Size (mm)L290*W270*H480L310*W290*H600L370*W390*H680L410*W450*H720
Water Outlet (mm)10141618
Water IntakeDN25DN40DN40DN40
Flow Rate (M3/H)3457
Lift (m)4101214
Span (m)2.03.04.75.5
Spray Height (m)2.02.22.83.0
Standard Built-in Light3W/Monochrome3W/Monochrome3W/Monochrome3W/Monochrome
Power SourceStepper MotorStepper MotorStepper MotorStepper Motor
Power VoltageDC24DC24DC24DC24
Operating Angle±30°±30°±30°±30°

Jumping Jets

Products Features

The jumping jet is a kind of fountain equipment that sprays water into the glass under pressure. First, the water enters the laminar jumping fountain equipment through the water inlet. And then enters the filter. Finally sprayed from the water jet to form a glass rod-shaped arched fountain. This transparent water column is very ornamental. It is different from the laminar flow jet in that the equipment has a cutting device. The stepper motor drives the baffle of the cutting device to move, thereby cutting the continuous water column into segments as if the water column is beating.

01

The precision nozzle creates excellent glass-like effect.

02

Built-in LED lighting, the light can pass through the entire water column.

03

Built-in cutting device to create richer water forms.

04

No vibration & low noise, also suitable for indoor.

05

The glassy water column is also very ornamental during the day.

06

Can be controlled and programmed through DMX, PLC, and fountain software.

07

304 stainless steel design.

08

Stable dynamic parabola.

09

Precise landing point, clear water column.
